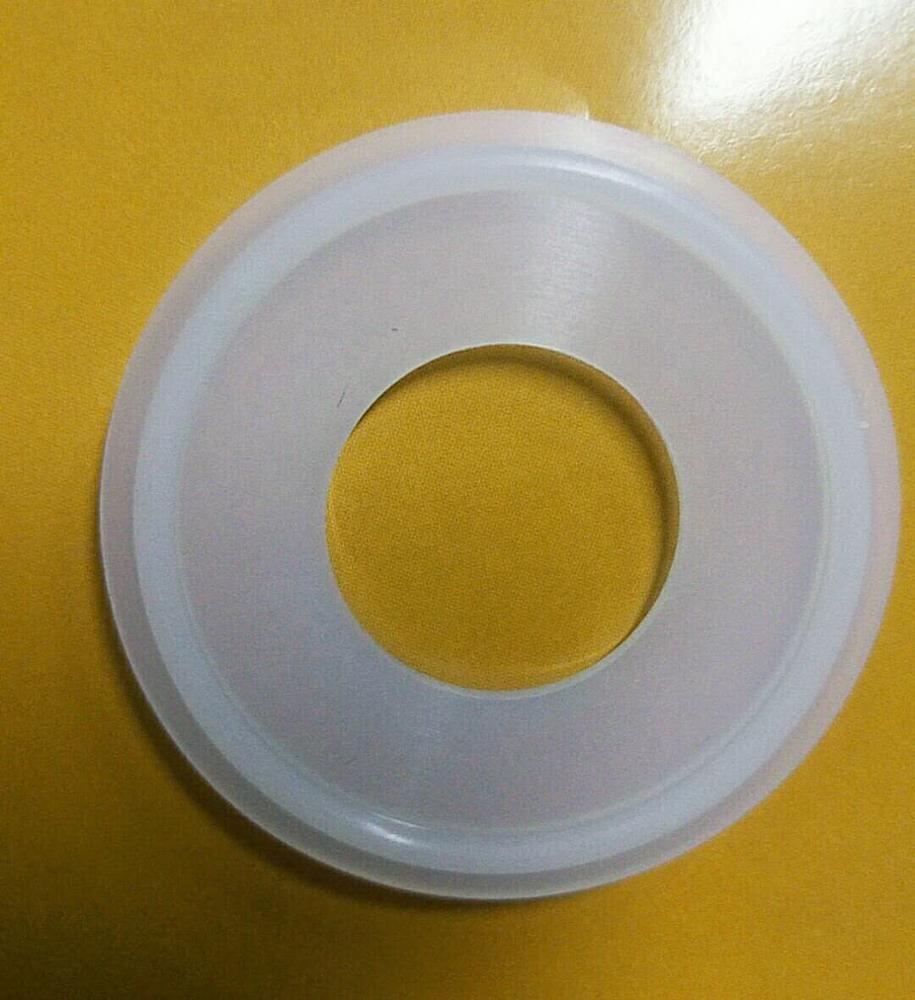

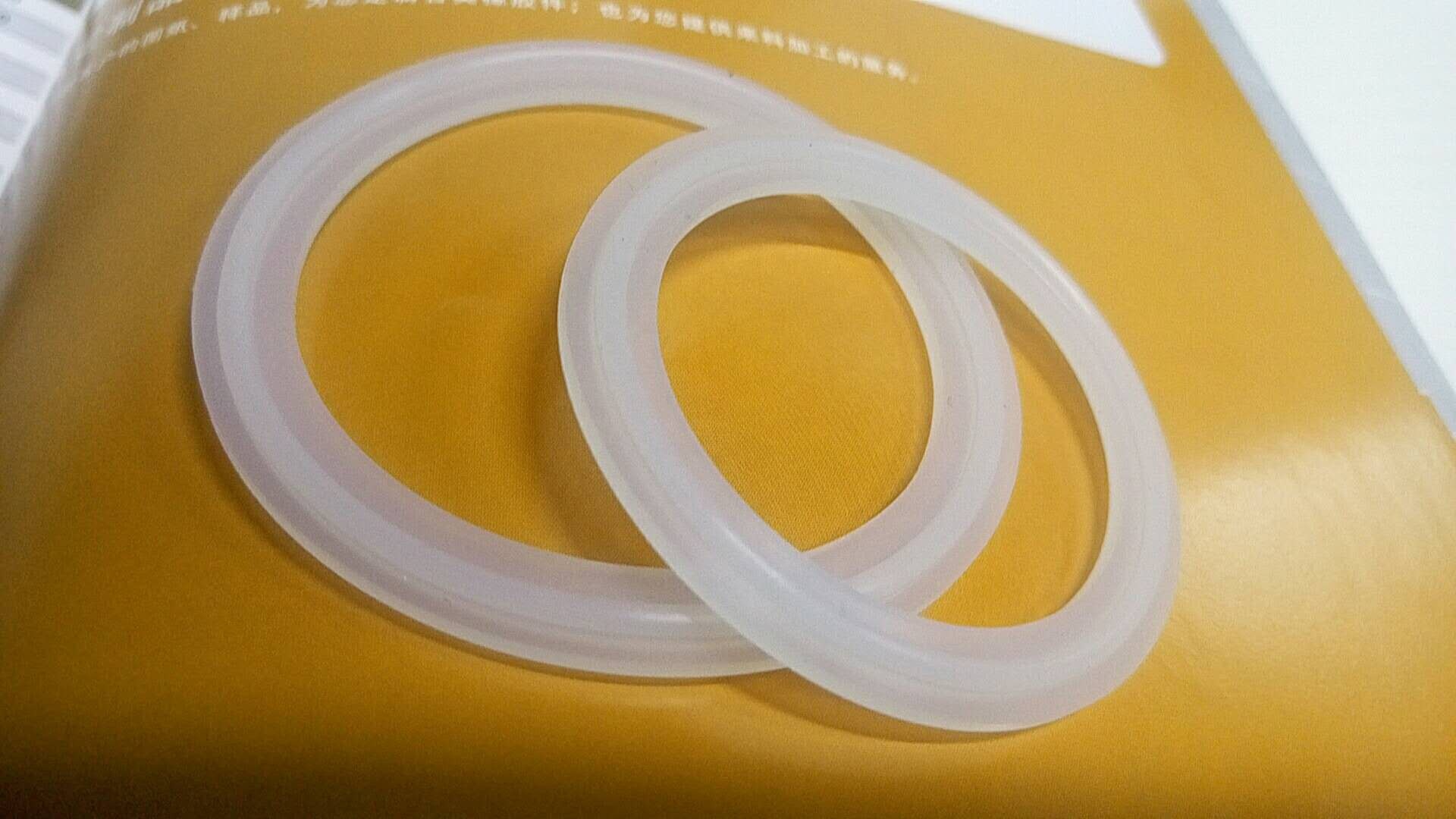

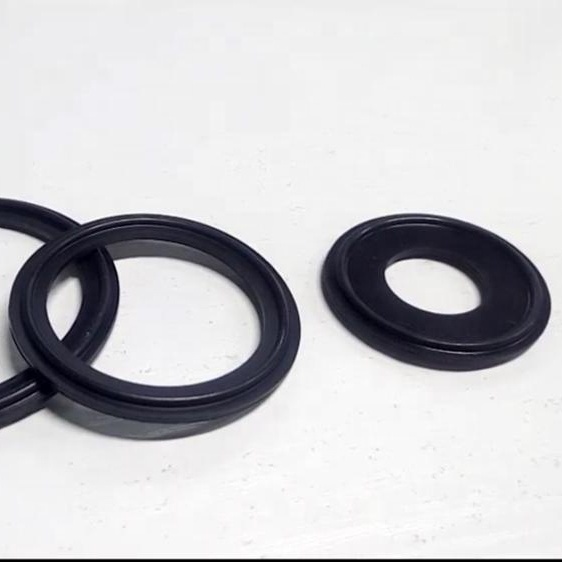

1.5″ FKM sanitary gasket with 20mesh/100mesh screen
Port:xiamenPayment Terms:L/C,D/P,T/T,Western Union,MoneyGram,paypalSupply Ability:50000000 Piece/Pieces per Month rubber o-rings for medicalPlace of Origin:Fujian ChinaBrand Name:Best SealModel Number:BSC14075CStandard or Nonstandard:standardMaterial:vitonSize:0.5″/1″/1.5″/2″/2.5″/3″/4″/6″Compliant:FDAColor:BLACKscreen:20mesh/100meshTolarance:RMA A2Others:PPAP Level III or IV availableName:sanitary gasketPackaging Detail:Inner: polybag
Outer: export grade carton
Finally, put on pallet
| Sanitary gasket Standard Size | ||||
| Size(Fits Tube Size) | Diemensions | filter screen 316SS | Material (including have screen and no screen) | Material (No screen ) |
| 1/2" | ID0.38"X OD0.86"XTHK0.178" | 20mesh/100mesh | Viton BLACK/EPDM BLACK/NBR BLACK/SILICONE CLEAR | PTFE WHITE |
| 1" | ID0.9"XOD1.98"XTHK0.203" | 20mesh/100mesh | Viton BLACK/EPDM BLACK/NBR BLACK/SILICONE CLEAR | PTFE WHITE |
| 1.5" | ID1.4"XOD1.98"X THK0.203" | 20mesh/100mesh | Viton BLACK/EPDM BLACK/NBR BLACK/SILICONE CLEAR | PTFE WHITE |
| 2" | ID1.9"XOD2.52"XTHK0.203" | 20mesh/100mesh | Viton BLACK/EPDM BLACK/NBR BLACK/SILICONE CLEAR | PTFE WHITE |
| 2.5" | ID2.4"XOD3.05"XTHK0.203" | 20mesh/100mesh | Viton BLACK/EPDM BLACK/NBR BLACK/SILICONE CLEAR | PTFE WHITE |
| 3" | ID2.9"XOD3.58"XTHK0.203" | 20mesh | Viton BLACK/EPDM BLACK/NBR BLACK/SILICONE CLEAR | PTFE WHITE |
| 4" | ID3.87"XOD4.68"XTHK0.203" | 20mesh | Viton BLACK/EPDM BLACK/NBR BLACK/SILICONE CLEAR | PTFE WHITE |
| 6" | ID5.82"XOD6.51"XTHK0.203" | 20mesh | Viton BLACK/EPDM BLACK/NBR BLACK/SILICONE CLEAR | PTFE WHITE |
| Product description | ||||
| 1. Tri-clamp screen gasket | ||||
| 2. Stainless steel 316L | ||||
| 3. FDA standard rubber | ||||
| 4.No screen is available | ||||
Best Seals does more than just supply standard parts, a large percentage of our business is based on custom product. We sell custom parts to original equipment manufactures (OEM’s), and to smaller distributors who have custom products they need sourced. Custom produced product allows for more complex designs that can tackle problems that standard parts fail to properly solve. Some of the highlights of our custom products division are:
•Custom products that are manufactured to your specifications.
•Best Seals can supply custom parts in virtually any material.
•Professional engineerer team help with the material selection process.
•Custom materials to meet specific color, fluid resistances, or physical properties.
•Prototyping of experimental designs.
